| LCD Panel |
Display size |
19.5″ Diagonal White LED-Backlight |
| Brightness(Typical) |
250cd/m2 (Typical) |
| Contrast(Typical) |
1000:1 (Typical)
80,000,000:1 (Active Contrast ) |
| Pixel Pitch |
0.2712(H) * 0.2626(V) |
| Resolution (H x V) |
1600 x900 |
| Aspect Ratio |
16:9 |
| Response Time(Typical) |
5ms |
| View Angles LR,UD(CR>10) |
HV 170°/160° |
| Panel Surface |
Anti-glare |
| Display Colors |
16.7M colors |
| PC Input Range |
Horizontal Freq. |
30 to 81KHz |
| Vertical Freq. |
56 to 75Hz |
Max. display frequency
(Resolution H*V/Fv) |
1600 x900 / 60hz |
| Interface |
Input 1 |
D-Sub x 1 |
| Power |
Consumption(Typical) |
On: 25 W
Standby<=0.5W, Off<=0.5W |
| AC Power Range |
AC 100~240V |
Power Mode
Indicator Light |
Power on : Green (LED)
Power saving : Green Flicker (LED) |
Operating
Condition |
Temperature |
5℃ ~ 35℃ |
| Humidity |
20% ~ 85%, non-condensing |
| Physical |
Dimension
(W*D*H) |
478*353*180mm |
Packing Dimension
(W*D*H) |
514*355*105mm |
| Net Weight |
2.6KG |
| Gross Weight |
3.4KG |
| Tilt |
-5∘~15∘ |
| Kensington Lock |
Yes |

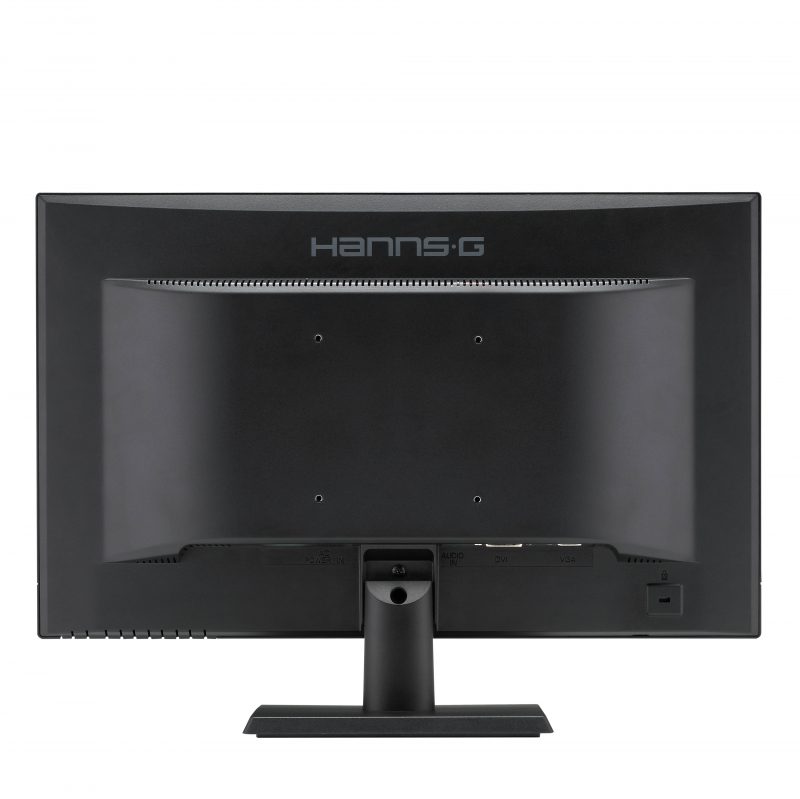

| VESA Mounting |
75x 75mm |
| Controls |
Front Control |
Menu, -, +, Auto, Power |
| On Screen Display |
11(English, French, German, Italian, Simplified Chinese, Traditional Chinese, Korean, Japanese, Espanola, Portuguese, Russian ) |
| Color |
9300,6500,5500, User Mode |
| Preset Mode |
PC, Movie, Game Modes |
| Accessory |
Power Cable |
Yes |
| VGA Cable (1.5M) |
Yes |
| Warranty card |
Yes, HSD format |
| User Manual(e-file) |
Yes, HSD format |
| Quick Start Guide(Paper) |
Yes, HSD format |
| Color Plan |
Arm / Base /Bezel / Rear Cover – Black Texture |
| Carton Box |
Brown carton, HSD format |
| Certification |
CE |
